Steel Truck Dock Boards
Rated for forklift use and built for the busy dock — Steel Truck Dock Boards provide a safe and efficient transition between dock and trailer. Six standard models cover above-dock, below-dock, scoop-style, fixed-leg, and light-duty applications across capacities from 10,000 to 40,000 lbs. Custom sizes and higher capacities available.
Manufactured and tested in compliance with ANSI Standard MH30.2.
Models
6 variants — pick by application, capacity, and dock conditions.

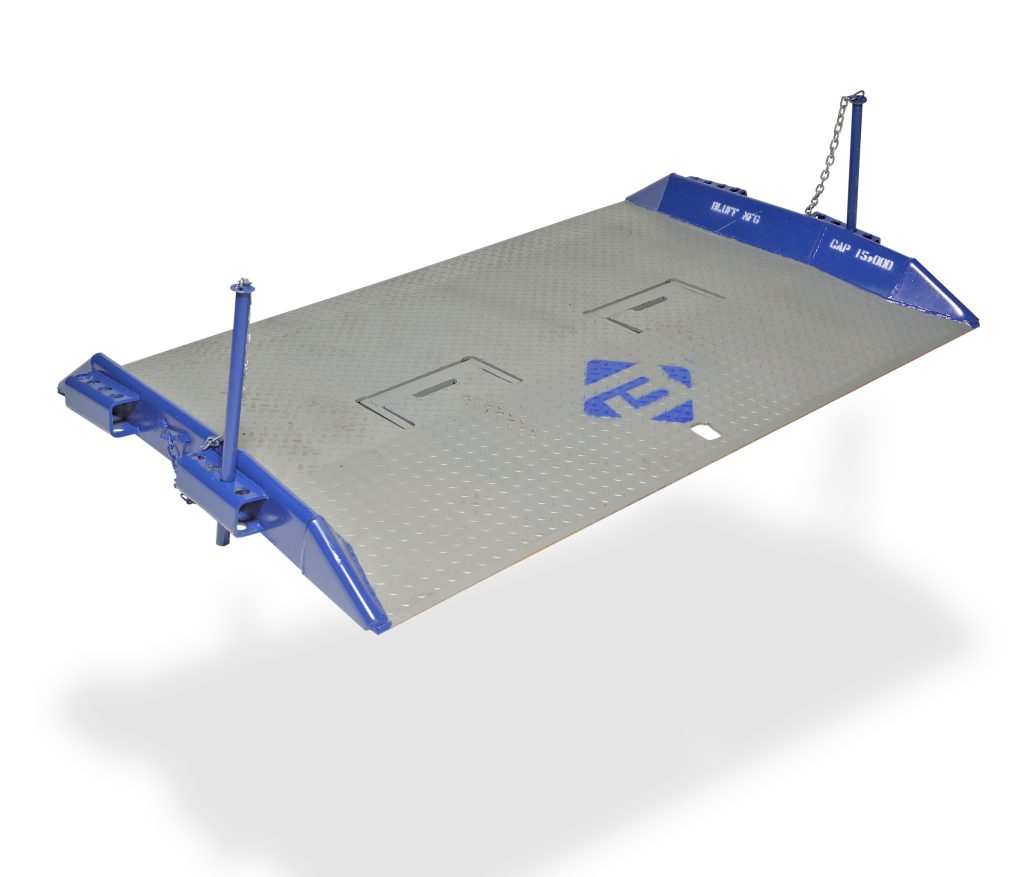

Steel Dock Boards — Model T
Capacities of 15,000 to 40,000 lbs
All-steel welded construction makes Model T the choice for busy docks where high traffic cycles, high capacities, and multiple shifts demand maximum performance. Two 1" stress-proof steel pins hold the board in place via four-hole pin pockets on each edge — pick the position that fits, then go. Suitable for above- and below-dock loading depending on height differential.
Features & Benefits
- All-welded steel construction
- Double-bend design
- Capacities from 15,000 to 40,000 lbs
- Two four-hole pin pockets per edge
- Above and below dock loading
- Fold-down lifting loops
- Use with conventional, refrigerated, or container trailers
- Widths 60" – 96" · Lengths 48" – 120"
Literature & Options
Spec sheets
Options & Accessories
- · Higher capacities & custom sizes on request
- · Refrigerated-trailer lip option
Model Chart
Standard options shown — higher capacities and custom sizes available on request.
| Model # | Capacity (lbs) | Width (in) | Length (in) | Weight (lbs) | 14% Grade Up (in) | 19% Grade Up (in) |
|---|---|---|---|---|---|---|
| 15T6048 | 15,000 | 60 | 48 | 439 | 5 | 7 |
| 15T6060 | 15,000 | 60 | 60 | 523 | 7 | 9 |
| 15T6072 | 15,000 | 60 | 72 | 607 | 8.5 | 11 |
| 15T7248 | 15,000 | 72 | 48 | 506 | 5 | 7 |
| 15T7260 | 15,000 | 72 | 60 | 605 | 7 | 9 |
| 15T7272 | 15,000 | 72 | 72 | 703 | 8.5 | 11 |
| 20T6048 | 20,000 | 60 | 48 | 490 | 5 | 7 |
| 20T7260 | 20,000 | 72 | 60 | 681 | 7 | 9 |
| 20T7272 | 20,000 | 72 | 72 | 795 | 8.5 | 11 |
| 20T8448 | 20,000 | 84 | 48 | 646 | 5 | 7 |
Standard configurations shown. Capacities of 25k/30k/40k lbs and custom widths/lengths available — request a quote with your dock specifications.
Need this model sized for your dock?
Send us the dock height, trailer type, and capacity — we'll spec it and quote within 24 hours.

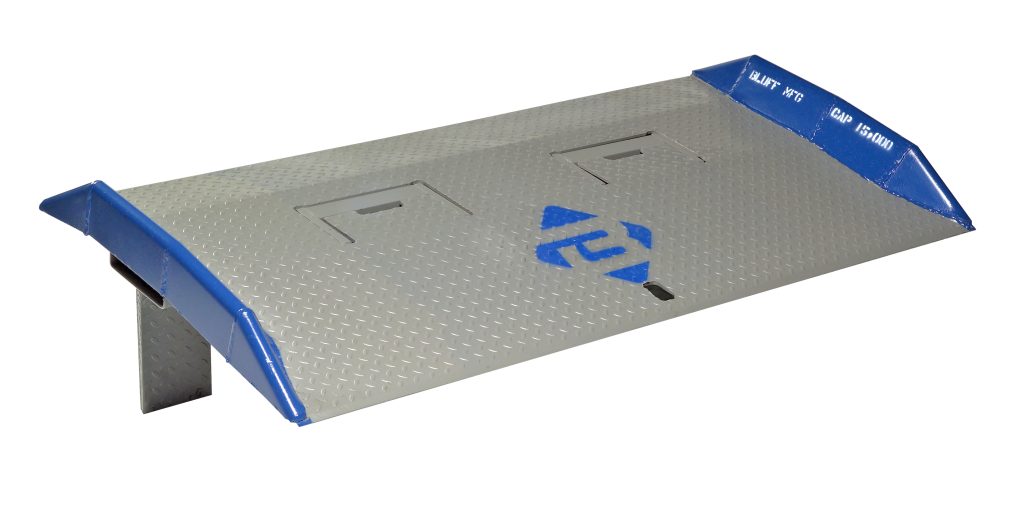

Steel Dock Boards — Model TFL (Fixed Legs)
Capacities of 15,000 to 40,000 lbs
Like the Model T but with fixed (locking) legs instead of placement pins. All other T-board features remain — fold-down lift loops and the double-bend design ensure maximum coverage no matter what the truck. Standard 15k and 20k lb capacities carry ANSI MH30.2 certification; higher capacities available. Not recommended for below-dock loading.
Features & Benefits
- All-steel welded construction
- Fixed (locking) leg design
- Above dock loading only
- Fold-down lifting loops standard
- Widths 60" – 84" · Lengths 48" – 120"
- ANSI MH30.2 certified (15k & 20k)
Literature & Options
Spec sheets
Options & Accessories
- · Higher capacities & custom designs on request
Model Chart
Standard options shown — higher capacities and custom sizes available on request.
| Model # | Capacity (lbs) | Width (in) | Length (in) | Weight (lbs) | 14% Grade Up (in) | 19% Grade Up (in) |
|---|---|---|---|---|---|---|
| 15TFL6048 | 15,000 | 60 | 48 | 480 | 5 | 7 |
| 15TFL6060 | 15,000 | 60 | 60 | 564 | 7 | 9 |
| 15TFL6072 | 15,000 | 60 | 72 | 647 | 8.5 | 11 |
| 15TFL7248 | 15,000 | 72 | 48 | 554 | 5 | 7 |
| 15TFL7260 | 15,000 | 72 | 60 | 653 | 7 | 9 |
| 15TFL7272 | 15,000 | 72 | 72 | 751 | 8.5 | 11 |
| 20TFL6048 | 20,000 | 60 | 48 | 543 | 5 | 7 |
| 20TFL7260 | 20,000 | 72 | 60 | 742 | 7 | 9 |
Standard configurations shown. Full chart includes 25k/30k/40k lb capacities and additional sizes.
Need this model sized for your dock?
Send us the dock height, trailer type, and capacity — we'll spec it and quote within 24 hours.

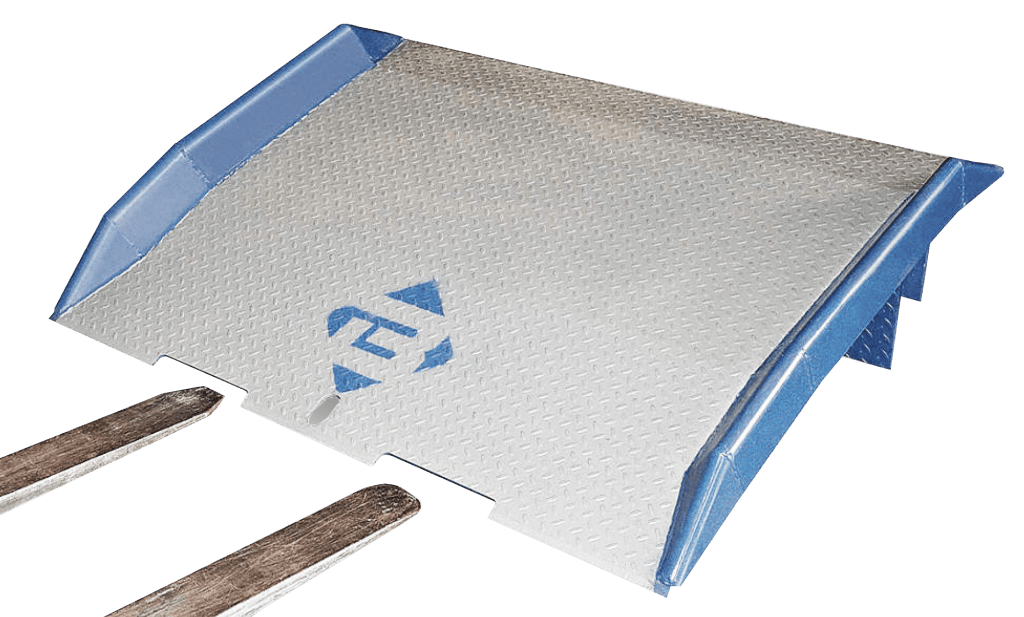

Steel Dock Boards — Model SB (Speedy Board™)
Capacities of 10,000 to 40,000 lbs
Takes the steel T-board design and adds fork cut-outs on the leading edge so the driver can scoop the board into and out of position without leaving the forklift cage. Available as an SB option on TFL, TNB, and SC boards at no additional charge. Above-dock loading only — not recommended for below-dock applications.
Features & Benefits
- Capacities from 10,000 to 40,000 lbs
- Fork cut-outs on leading edge
- Driver stays in the forklift cage
- Requires tilted/tapered fork operation
- Fixed (locking) leg design
- Above dock loading only
- Widths 60" – 84" · Lengths 48" – 120"
Literature & Options
Spec sheets
Options & Accessories
- · Higher capacities & custom designs
- · 14" lip option for refrigerated trucks
Model Chart
Standard options shown — higher capacities and custom sizes available on request.
| Model # | Width (in) | Length (in) | Weight (lbs) | 14% Grade Up (in) | 19% Grade Up (in) |
|---|---|---|---|---|---|
| 10SB6030 | 60 | 30 | 208 | 2 | 3 |
| 10SB6048 | 60 | 48 | 335 | 5 | 7 |
| 10SB6060 | 60 | 60 | 415 | 7 | 9 |
| 13SB6048 | 60 | 48 | 404 | 5 | 7 |
| 13SB7248 | 72 | 48 | 469 | 5 | 7 |
| 15SB6048 | 60 | 48 | 457 | 5 | 7 |
| 15SB7260 | 72 | 60 | 630 | 7 | 9 |
10k–15k lb sample shown. 20k–40k lb capacities and custom widths available.
Need this model sized for your dock?
Send us the dock height, trailer type, and capacity — we'll spec it and quote within 24 hours.

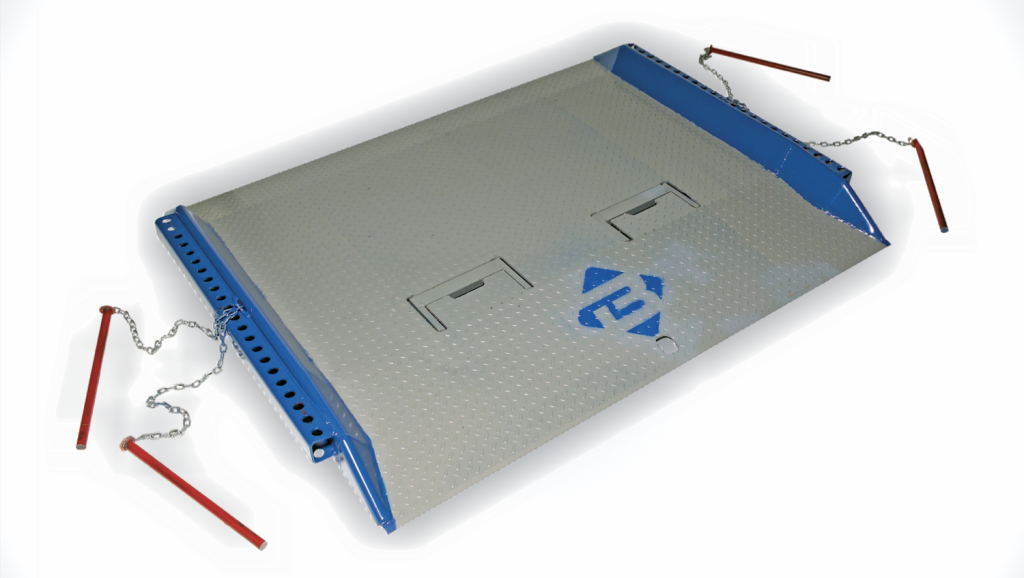

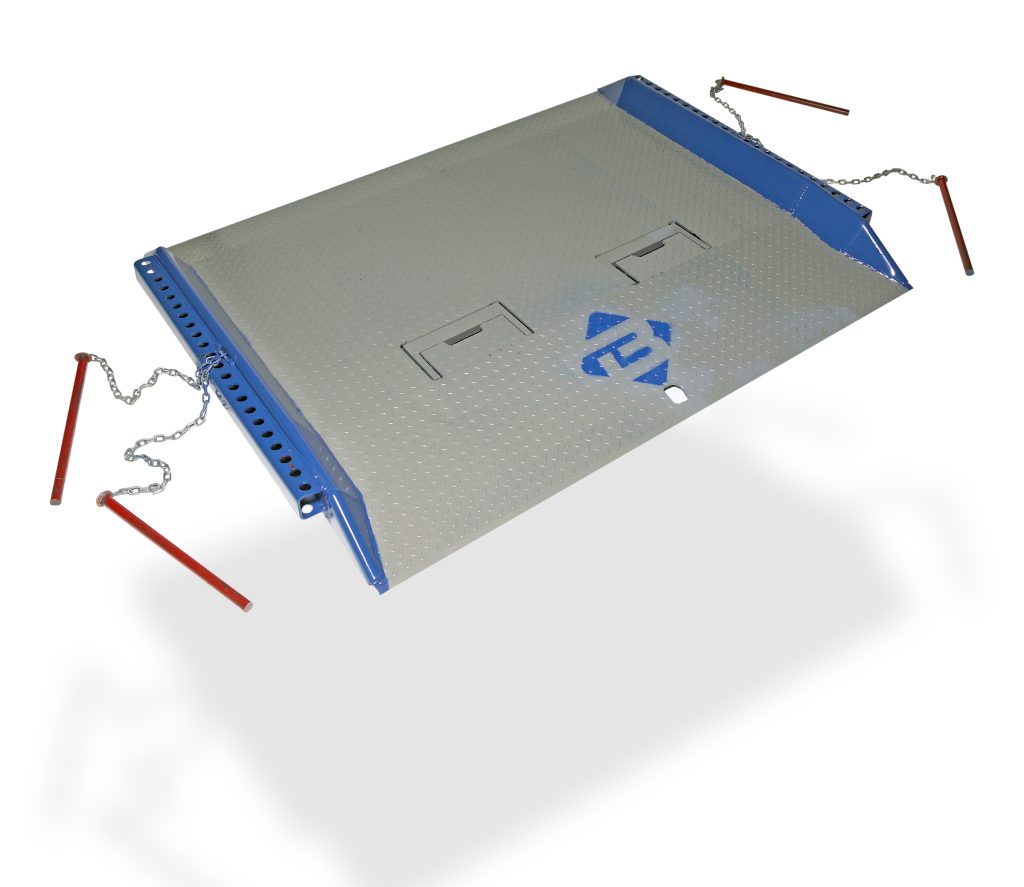

Steel Dock Boards — Model C (Red Pin)
Capacities of 15,000 to 40,000 lbs
Full-length pin pockets and two locking pins on each side keep this board secure even in tough park-out situations. Suitable for above- and below-dock loading depending on height differential — a strong choice for temporary use over dock levelers under repair.
Features & Benefits
- Full-length pin pockets each side
- Dual-pin locking system
- For difficult dock-to-trailer positioning
- Fold-down lift loops
- All-steel welded construction
- Above and below dock loading
- Widths 60" – 84" · Lengths 48" – 120"
Literature & Options
Spec sheets
Options & Accessories
- · Speedy Board® scoop option available
- · Custom sizes & higher capacities
Model Chart
Standard options shown — higher capacities and custom sizes available on request.
| Model # | Capacity (lbs) | Width (in) | Weight (lbs) | Pin Length | 14% Grade Up (in) | 19% Grade Up (in) |
|---|---|---|---|---|---|---|
| 15C6048 | 15,000 | 60 | 460 | 20 | 5 | 7 |
| 15C6060 | 15,000 | 60 | 551 | 20 | 7 | 9 |
| 15C6072 | 15,000 | 60 | 607 | 24 | 8.5 | 11 |
| 15C7248 | 15,000 | 72 | 527 | 20 | 5 | 7 |
| 15C7260 | 15,000 | 72 | 633 | 20 | 7 | 9 |
| 15C8448 | 15,000 | 84 | 595 | 20 | 5 | 7 |
| 15C8460 | 15,000 | 84 | 714 | 20 | 7 | 9 |
| 20C6048 | 20,000 | 60 | 511 | 20 | 5 | 7 |
15k–20k lb sample shown. 25k–40k lb capacities and 78"/84" widths available.
Need this model sized for your dock?
Send us the dock height, trailer type, and capacity — we'll spec it and quote within 24 hours.

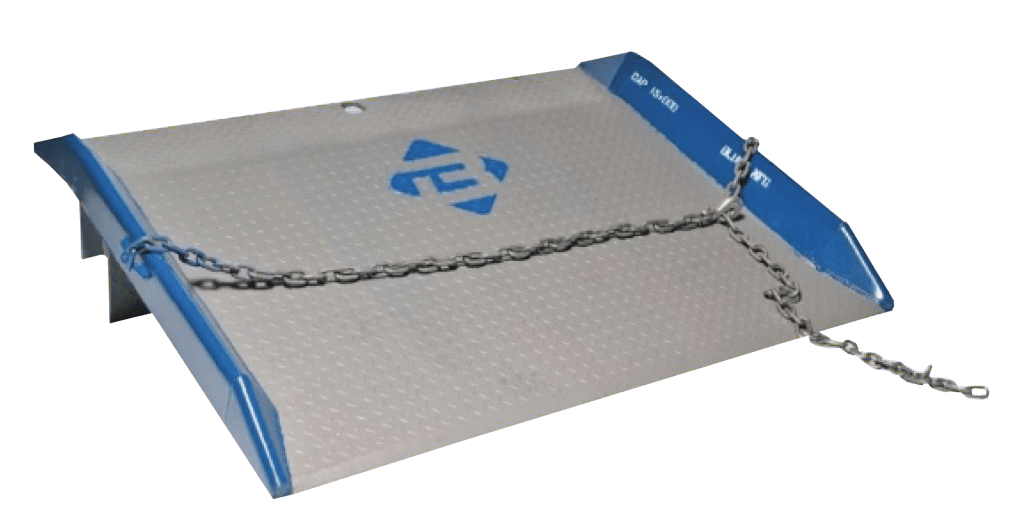

Steel Dock Boards — Model TNB (No Dockside Bend)
Capacities of 15,000 to 40,000 lbs
Eliminates the dock-side bend for a smoother transition that pallet jacks handle easily — works particularly well when the trip into the truck is up (dock lower than truck floor). All-welded construction with 4" high curbs allows custom-fit configurations. Standard 15k and 20k capacities carry ANSI certification.
Features & Benefits
- Single-bend design
- Smoother transition for pallet jacks
- Minimizes low under-clearance issues
- Fixed (locking) leg design
- Lifting chains standard
- All-welded construction
- 4" high curbs allow custom fit
- Above dock loading only
- Widths 60" – 84" · Lengths 48" – 120"
Literature & Options
Spec sheets
Options & Accessories
- · Higher capacities available
Model Chart
Standard options shown — higher capacities and custom sizes available on request.
| Model # | Capacity (lbs) | Width (in) | Length (in) | Weight (lbs) | 14% Grade Up (in) | 19% Grade Up (in) |
|---|---|---|---|---|---|---|
| 15TNB6048 | 15,000 | 60 | 48 | 529 | 5 | 7 |
| 15TNB6060 | 15,000 | 60 | 60 | 626 | 7 | 9 |
| 15TNB6072 | 15,000 | 60 | 72 | 723 | 8.5 | 11 |
| 15TNB7248 | 15,000 | 72 | 48 | 616 | 5 | 7 |
| 15TNB7260 | 15,000 | 72 | 60 | 730 | 7 | 9 |
| 20TNB6048 | 20,000 | 60 | 48 | 525 | 5 | 7 |
| 20TNB7260 | 20,000 | 72 | 60 | 698 | 7 | 9 |
Sample shown. 25k–40k lb capacities and 84"/96" widths available on request.
Need this model sized for your dock?
Send us the dock height, trailer type, and capacity — we'll spec it and quote within 24 hours.

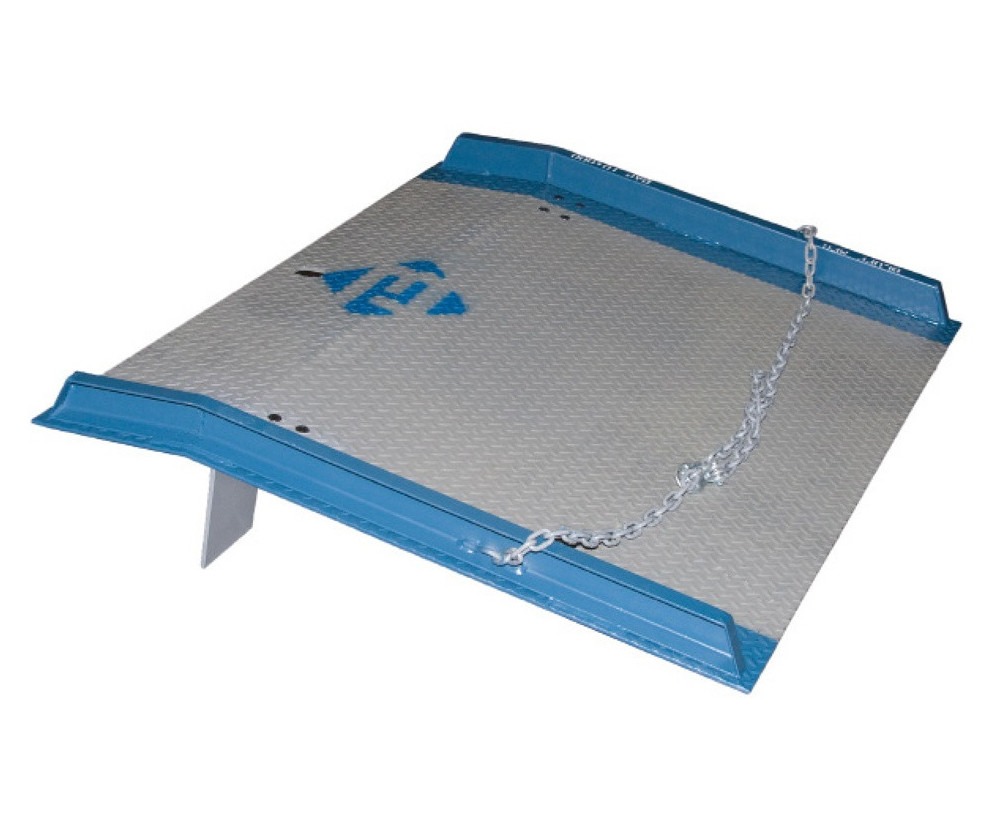

Steel Dock Boards — Model SC (Light Duty)
Capacities of 10,000 to 13,000 lbs
An economical steel dock board with welded curbs that handles smaller loads in standard warehouse environments. Conventional design with 11" lip and fixed lock legs — ideal for occasional use, not high-cycle / high-capacity work. 10k lb capacity works with trucks up to 3,000 lbs; 13k lb works with trucks up to 4,000 lbs. Above-dock loading only.
Features & Benefits
- Light-duty steel option
- Steel plate with welded steel curbs
- Bolt-on locking legs
- Lifting chains included
- Above dock loading only
- Widths 60" – 84" · Lengths 36" – 96"
- ANSI MH30.2 certified
Literature & Options
Spec sheets
Options & Accessories
- · Custom sizes & designs
- · Speedy Board® cutouts
- · Refrigerated-lip (SCRL) for reefer trailers
Model Chart
Standard options shown — higher capacities and custom sizes available on request.
| Model # | Capacity (lbs) | Width (in) | Length (in) | Weight (lbs) | 14% Grade Up (in) | 19% Grade Up (in) |
|---|---|---|---|---|---|---|
| 10SC6030 | 10,000 | 60 | 30 | 228 | 2 | 3 |
| 10SC6036 | 10,000 | 60 | 36 | 324 | 3 | 5 |
| 13SC6042 | 13,000 | 60 | 42 | 364 | 4 | 6 |
| 13SC6048 | 13,000 | 60 | 48 | 404 | 5 | 7 |
| 13SC6060 | 13,000 | 60 | 60 | 484 | 7 | 9 |
| 13SC7248 | 13,000 | 72 | 48 | 469 | 5 | 7 |
| 13SC7260 | 13,000 | 72 | 60 | 563 | 7 | 9 |
Use with trucks up to 3,000 lb (10k cap) or 4,000 lb (13k cap). Custom sizes available.
Need this model sized for your dock?
Send us the dock height, trailer type, and capacity — we'll spec it and quote within 24 hours.
Resource Library
Steel vs. Aluminum Dock Boards
Both materials have a place. Use this quick comparison to start your selection — the right answer usually depends on cycle frequency, environment, and capacity.
Steel Dock Boards
- DurabilityStronger and more resistant to bending or warping than aluminum. Suited for heavy-duty, high-traffic dock environments.
- Higher capacitySteel supports higher weight ratings at similar size and thickness than aluminum — the right pick for heavy loads.
- Longer lifespanGreater durability translates to longer service life and lower replacement frequency over time.
- Impact resistanceMore resistant to dent or deformation from heavy load drops and forklift impacts during loading.
- Best forMulti-shift docks, heavy forklifts, and below-dock loading conditions.
Aluminum Dock Boards
- LightweightSignificantly lighter than steel. Easier to handle, reposition, and store — especially for manual deployment.
- Corrosion resistantNaturally resists rust and corrosion. Strong choice for outdoor docks, salt-air environments, or wet conditions.
- Non-sparkingWon't spark when struck or scraped — safer in facilities handling flammable materials or gases.
- Low maintenanceNo painting or rust-prevention coating required. Lower ongoing upkeep cost than painted steel.
- Best forLower-cycle docks, lighter loads, outdoor exposure, and where weight handling matters.
